Trailer Lights Issue

[sweeney]

Probably going to be 2 pinks =a blue one goes to reverse lights other probably goes to solenoid on your trailer for your surge brakes, green=green, yellow=yellow, black and black one to each side of your taillights=black, white=white would be my guess, just make sub elect do it he might have some romex or blue extension cord laying around.......



[guywhofishes]

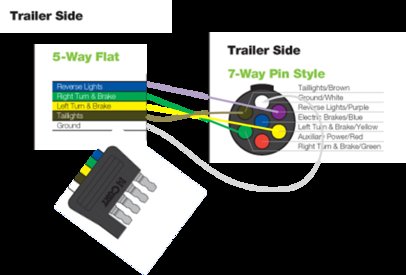

So on that picture, you're coming off of a 5 pin, and your confusing me again. dammit guy

.

So on that picture, you're coming off of a 5 pin, and your confusing me again. dammit guy

was it confusing because I didn't cut the old plug off???

And used the vehicle side instead of the replacement Trailer side 7-pin you bought at lunch?



[DirtyMike]

was it confusing because I didn't cut the old plug off???

And used the vehicle side instead of the replacement Trailer side 7-pin you bought at lunch?

you're going for a full dirtymike meltdown today, arent you? It's the number of wires coming from the trailer which differs with the picture you posted.



[dust in the wind]

you're going for a full dirtymike meltdown today, arent you? It's the number of wires coming from the trailer which differs with the picture you posted.

as has been mentioned - more than likely they ran 2 wires from the plug instead of one wire from the plug and splitting the wire into 2 (one for each side of the trailer).



[guywhofishes]

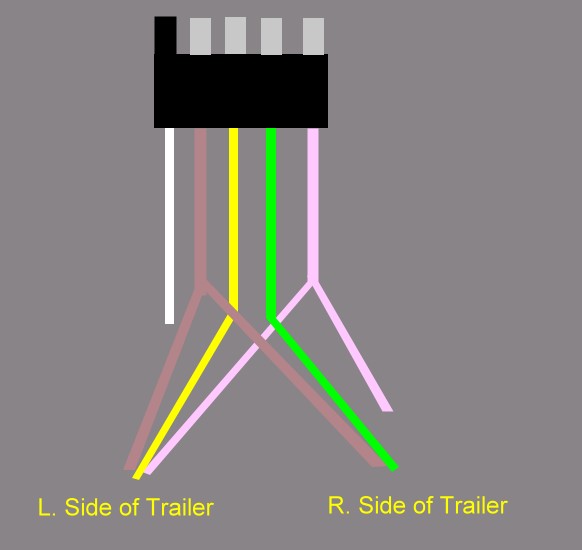

the two pinks go to same pin

the two browns go to same pin

- - - Updated - - -

when you cut it off dig in there and have a look

- - - Updated - - -

or use a test probe

tell me you have a test probe!



[DirtyMike]

Bckhntr, you don't truly understand how much of an idiot I am if there's some wires involved. I'd be the worst suicide bomber.



[johnr]

Bckhntr, you don't truly understand how much of an idiot I am if there's some wires involved. I'd be the worst suicide bomber.

and yet you manipulate peoples "wired up" spines...haha
Just pretend those 7 confusing wires are nerves running through the C-7 of some fat guys neck. Youll be fine



[dust in the wind]

Bckhntr, you don't truly understand how much of an idiot I am if there's some wires involved. I'd be the worst suicide bomber.

Help any???



[DirtyMike]

It does. I just decided that after fishing tonight, I'm going to clip it off and hope for the best. Better swing by captain jacks.

- - - Updated - - -

and yet you manipulate peoples "wired up" spines...haha
Just pretend those 7 confusing wires are nerves running through the C-7 of some fat guys neck. Youll be fine

That's what malpractice insurance is for.


:;:



[fnznfwl]

Go buy a 7 pin connector at a auto parts store. They come with a diagram of what color where and makes the plug more resistant to damage. Also eliminates the need for an adapter

http://www.northerntool.com/shop/tools/product_200127974_200127974

something like this. I have converted all of my 4 and 5 blade plugs to one of these so im not constantly chasing adapters around



this should get you close. i would still use a test light to check what function each pin performs

Do not just match up the wires you have with what is printed on the 7 way plug, they are different than say on a 4 way plug as the above diagram shows. Use that diagram (or a test light) to determine location of the wires.



[JayKay]

also - I have those same shoes

Yeah, but are yours intermittently filled with viszla poop?



[sweeney]

is there a such thing as to much help.....



[SDMF]

- - - Updated - - -

if you thank me with jigs/lures please, for the love of all that is holy, don't rely on wags as the delivery dude

i can deliver them. I get back and forth often enough.



[Mort]

wow....I go miss this AM and this what I miss....Dirty....If I'd been in Bismarck I'd help you out in a heartbeat....



[Muzzytipped]

You cant find one of these in town Glens Welding ?



[SDMF]

You cant find one of these in town Glens Welding ?

You might as well be using Klingon sign language.0



[DirtyMike]

In retrospect, I think Juan had a good idea. But I'm going to check a couple places tomorrow.



[guywhofishes]

Teach a man to fish...



[DirtyMike]

Haha. Instead of fixing this I went fishing. I'll give you a call tomorrow guy.



[Allen]

Nothing difficult in this. Cut your worn plug off and use a multimeter to test for continuity between the plugs and wires and that will give you the pattern you need in determining which wires will need to be attached to the corresponding pins on your new plug.

- - - Updated - - -

A pen and sheet of paper to sketch it out helps.
